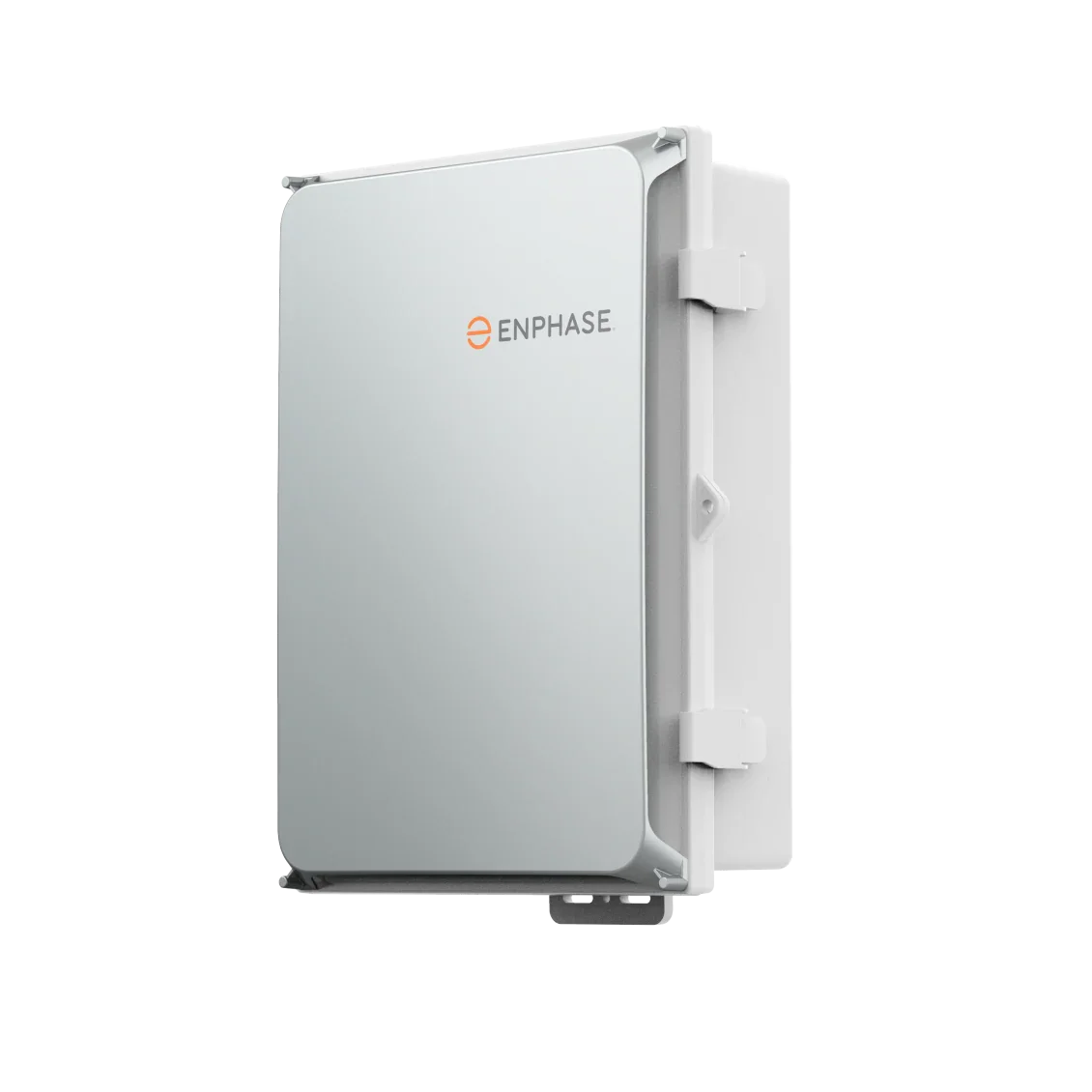

Enphase IQ Combiner 5C
Model X-IQ-AM1-240-5C-HDK | Pre-Wired IQ Gateway & CTs | Mobile Connect Cell Modem | NEMA 3R
Product Overview
The Enphase IQ Combiner 5C (X-IQ-AM1-240-5C-HDK) merges interconnection gear, IQ Gateway communications, and circuit protection into a single NEMA 3R enclosure — making solar-plus-storage installs faster and cleaner. Factory-installed components and a consistent, pre-wired form factor reduce on-site labor and parts management.
Built for 120/240 Vac, 60 Hz residential service, the IQ Combiner 5C provides up to four 2-pole Eaton BR branch breaker spaces for PV and storage, an included 10 A / 15 A IQ Gateway breaker, and a 125 A busbar — all behind a weather-rated steel enclosure backed by a 5-year limited warranty.
Key Benefits
Pre-Wired IQ Gateway & Metering: A revenue-grade IQ Gateway, production CT, and consumption CTs ship factory-installed, so the combiner arrives ready for monitoring — no field assembly of the gateway and CTs required.
Integrated Cell-Modem Connectivity: The included Mobile Connect cellular modem keeps the IQ Combiner 5C online even when the homeowner's Wi-Fi is down — ensuring continuous monitoring and remote diagnostics.
All-in-One Interconnection Enclosure: Consolidates PV and storage breakers, IQ Gateway communications, and circuit protection into one NEMA 3R enclosure — reducing on-site components and wiring complexity.
125 A Busbar & 4 Branch Circuits: A 125 A busbar with up to four 2-pole Eaton BR breaker spaces provides flexible interconnection for PV branches and storage circuits in a typical residential installation.
Up to 80 A PV / Storage Input: Supports up to 80 A of combined PV and storage input (95 A with the IQ Gateway breaker) — enough capacity for a robust whole-home Enphase Energy System.
NEMA 3R Outdoor-Rated & 5-Year Warranty: A NEMA 3R steel housing and 5-year limited warranty ensure reliable monitoring and code-compliant interconnection for years to come.
How It Works
The IQ Combiner 5C is the central interconnection point of an Enphase home energy system. PV branch circuits from IQ Microinverters and storage circuits land on the 125 A busbar, while the factory-installed IQ Gateway and CTs handle metering and communications.
Branch Aggregation: Up to four 2-pole Eaton BR breakers terminate PV and storage branches on a 125 A busbar inside one NEMA 3R enclosure.
Production & Consumption Metering: Pre-installed production and consumption CTs feed accurate energy data through the IQ Gateway to the Enphase App and monitoring cloud.
Always-On Connectivity: The IQ Gateway communicates over Ethernet, Wi-Fi, or the included cellular Mobile Connect modem — keeping the system reachable even during home internet outages.
Technical Specifications
| Manufacturer | Enphase Energy |
| Model Number | X-IQ-AM1-240-5C-HDK |
| Product Family | IQ Combiner 5C |
| System Voltage | 120 / 240 Vac, 60 Hz |
| Busbar Rating | 125 A |
| Maximum PV / Storage Input | 80 A (95 A with IQ Gateway breaker) |
| Branch Circuits | Up to 4 × 2-pole Eaton BR breakers |
| IQ Gateway Breaker | 10 A / 15 A included |
| Pre-Installed Metering | IQ Gateway, Production CT & Consumption CTs (revenue-grade) |
| Communications | Ethernet / Wi-Fi / Cellular (Mobile Connect modem included) |
