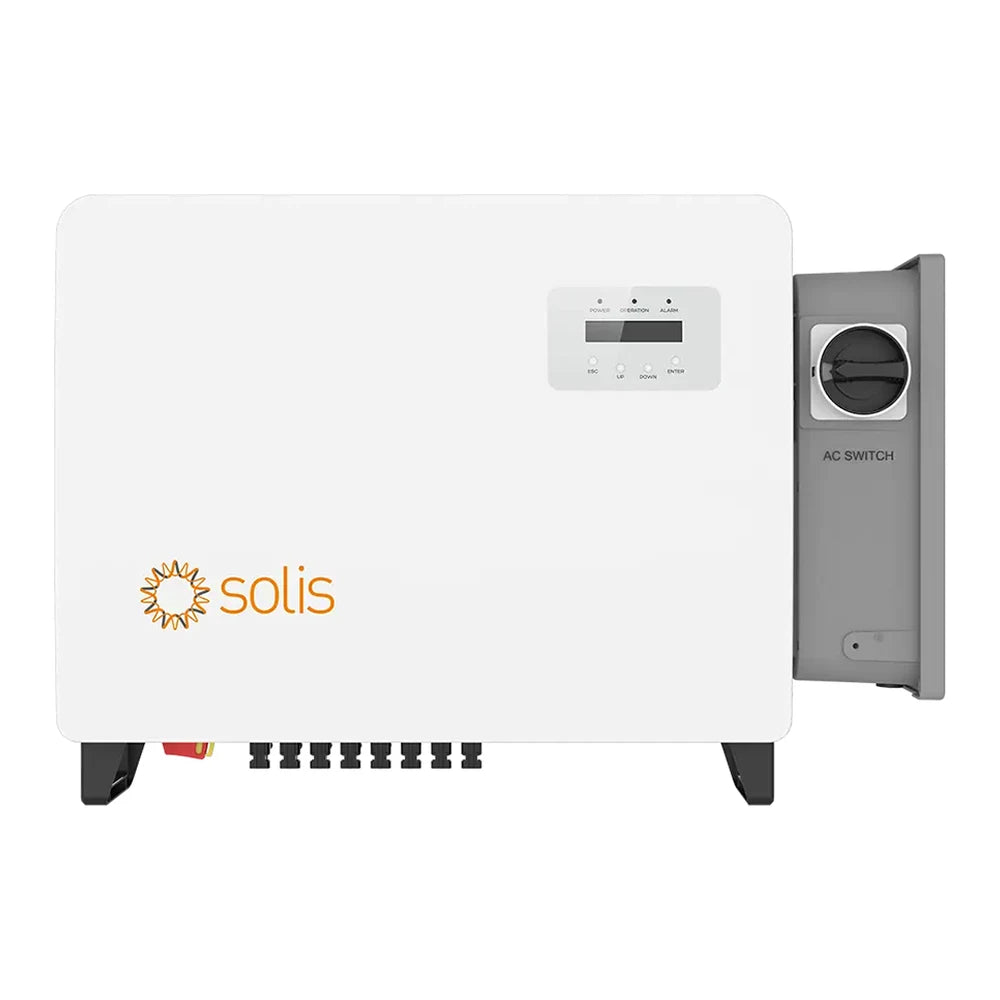

Solis S6-GC30K-LV-US-APST 30 kW String Inverter — High-Efficiency 208 V Three-Phase Power
The Solis S6-GC30K-LV-US-APST 30 kW String Inverter is a next-generation three-phase inverter designed for commercial and light-industrial PV systems. Developed by Ginlong Technologies, the Solis S6-GC30K-LV-US-APST 30 kW String Inverter combines exceptional conversion efficiency with advanced AFCI protection and multiple MPPT channels. Built for low-voltage 208 V applications, the Solis S6-GC30K-LV-US-APST 30 kW String Inverter offers reliability, scalability, and seamless integration for North American grid standards.
Product Features
High Conversion Efficiency
Achieves up to 98.7 % maximum efficiency with 3 independent MPPT trackers, ensuring optimal solar energy harvest across varying conditions.
Advanced Safety Protection
The Solis S6-GC30K-LV-US-APST 30 kW String Inverter includes integrated AFCI (Arc-Fault Circuit Interruption), SPD Type II protection, and integrated DC disconnects for enhanced system safety.
Low Voltage, Three-Phase Output
Configured for 208 V three-phase operation, ideal for small commercial, educational, and industrial sites requiring stable low-voltage grid tie.
Smart Thermal Control
Active fan cooling ensures consistent temperature management for extended operational lifespan, even under high ambient temperatures.
Remote Monitoring Compatibility
Supports SolisCloud and Modbus TCP/RS485 protocols for remote performance monitoring, data logging, and easy troubleshooting.
How It Works
The Solis S6-GC30K-LV-US-APST 30 kW String Inverter converts direct current (DC) from solar modules into alternating current (AC) for grid export. Its multi-MPPT design maximises power generation across strings with differing orientations or shading. Integrated communication enables seamless data access through the SolisCloud monitoring platform.
Specifications
| Model | S6-GC30K-LV-US-APST |
| Rated AC Output Power | 30 kW |
| Nominal AC Voltage | 208 V (3-Phase) |
| Maximum DC Input Voltage | 1000 V DC |
| MPPT Voltage Range | 180 – 850 V DC |
| Number of MPPT Inputs | 3 |
| Maximum Efficiency | 98.7 % |
| DC/AC Ratio | Up to 1.5 |
| Cooling Method | Active Cooling (Fan) |
| Enclosure Rating | NEMA 4X / IP65 |
| Operating Temperature Range | -25 °C to +60 °C (-13 °F to 140 °F) |
| Communication Interfaces | RS485 / Wi-Fi / SolisCloud / Modbus TCP |
| Dimensions (L × W × H) | 30.3 × 24.4 × 11.0 in (770 × 620 × 280 mm) |
| Weight | ≈ 121 lb (55 kg) |
| Manufacturer | Solis (Ginlong Technologies) |
Specifications verified from official Solis S6-GC30K-LV-US datasheet (Rev. 2023) and Solar-Electric / PowerStore listings.
| SKU | PES-SPS-SIV-0739 |
|---|---|
| MPN | S6-GC30K-LV-US-APST |
| Manufacturer | Solis |
| Container price | |
| Container qty | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number | |
| Voltage | |
| Warranty (years) | 10 |
