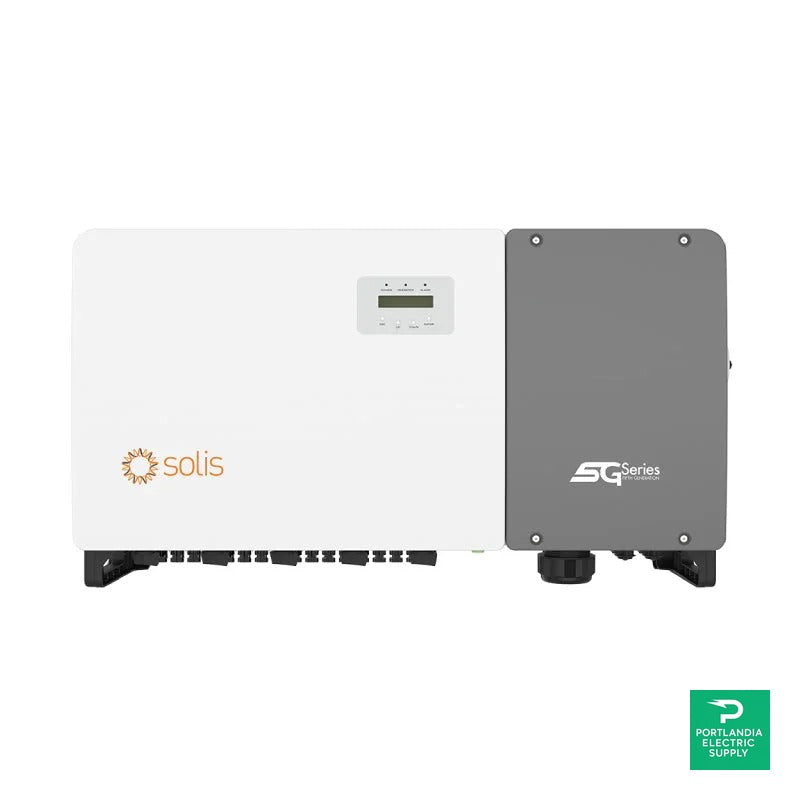

Solis 80kW Three Phase Inverter with Nine MPPT and AFCI
The Solis S5-GC80K-US inverter is designed for commercial and industrial solar PV solutions, offering exceptional efficiency and safety. With its nine MPPT configuration, this inverter ensures optimal performance and maximum energy harvest, making it an ideal choice for large-scale solar installations. Experience reliable and efficient power conversion with Solis' commitment to excellence.
Product Features
High Efficiency
Achieving up to 98.8% efficiency, the Solis inverter maximizes energy output and system performance, ensuring you get the most from your solar investment.
Intelligent Monitoring
Equipped with smart I-V curve scanning and real-time string monitoring, this inverter provides detailed insights and enhances system reliability.
Enhanced Safety Features
Featuring integrated AFCI protection and rapid shutdown capabilities, the Solis inverter prioritizes safety, drastically reducing fire risks.
Durable Design
With a robust Type 4X enclosure and C5 anti-corrosion level, the inverter withstands harsh environmental conditions, promising long-lasting operation.
Remote Management
Benefit from remote firmware upgrades and straightforward remote operations, simplifying maintenance and system management.
How It Works
The Solis S5-GC80K-US operates efficiently by integrating advanced components that work together to convert DC power from solar modules into usable AC power for industrial and commercial applications.
MPPT Technology
Multiple MPPTs ensure that maximum power is extracted from each solar array, enhancing the overall efficiency and energy yield of the system.
Transformerless Inverter Design
This design reduces weight and improves overall efficiency, making installation easier and the inverter more effective in energy conversion.
Communication Interfaces
The inverter supports RS485 and Ethernet communication, with optional Wi-Fi and cellular upgrades, facilitating easy monitoring and integration.
Specifications
| Max. Input Voltage | 1000 V |
| MPPT Voltage Range | 180-1000 V |
| Rated Output Power | 80 kW |
| Max. Efficiency | 98.8% |
| Dimensions (W*H*D) | 41.9*22.3*13.6 in |
| Weight | 187 lbs |
| Ingress Protection | TYPE 4X |
| Max. Operation Altitude | 13,120 ft |
| Compliance | UL1741SB, UL1741SA, IEEE 1547-2018 |
| Cooling Concept | Intelligent redundant fan-cooling |
| SKU | PES-SPS-SIV-0309 |
|---|---|
| MPN | S5-GC80K-US |
| Manufacturer | Solis |
| Brands | |
| Compliance special features | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Phase | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number | |
| Warranty (years) | 10 |
No documents available for this product. Contact us to request documentation.
