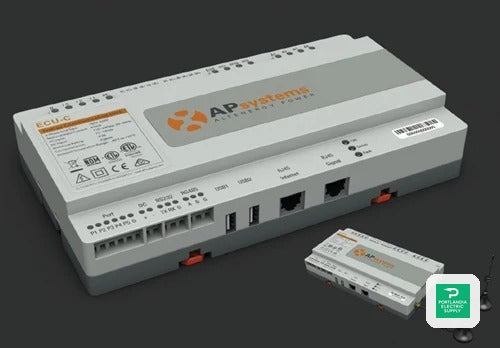

APsystems ECU-C gateway – advanced communications hub
The APsystems ECU-C gateway is a commercial-grade Energy Communication Unit that gathers production, consumption and grid-export data from up to 100 APsystems micro-inverters via encrypted ZigBee links and uploads it to the EMA portal through Ethernet or built-in Wi-Fi.
Key Features
Integrated metering & relay control
With internal high-frequency meters and a Form-C relay, the APsystems ECU-C gateway enables power-export limiting and automated load-shedding for advanced energy-management projects.
Specifications
| Dimensions (L × W × H) | 8.3 × 4.7 × 1.6 in |
|---|---|
| Weight | 1.1 lb |
| Max inverters | 100 |
| Comms to inverters | ZigBee 2.4 GHz |
| Comms to EMA | Wi-Fi 802.11 g/n & 10/100 M Ethernet |
| Power consumption | 3 W (120–277 VAC) |
| Enclosure | Indoor, NEMA 1 / IP20 |
Installation & Warranty
The APsystems ECU-C gateway ships with antennas, a power supply and a 3-year limited warranty, delivering reliable fleet-wide monitoring for single- or three-phase PV systems.
| SKU | PES-PA-ELC-1900 |
|---|---|
| MPN | 205001 |
| Manufacturer | APsystems |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Unit price | |
| Width | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
