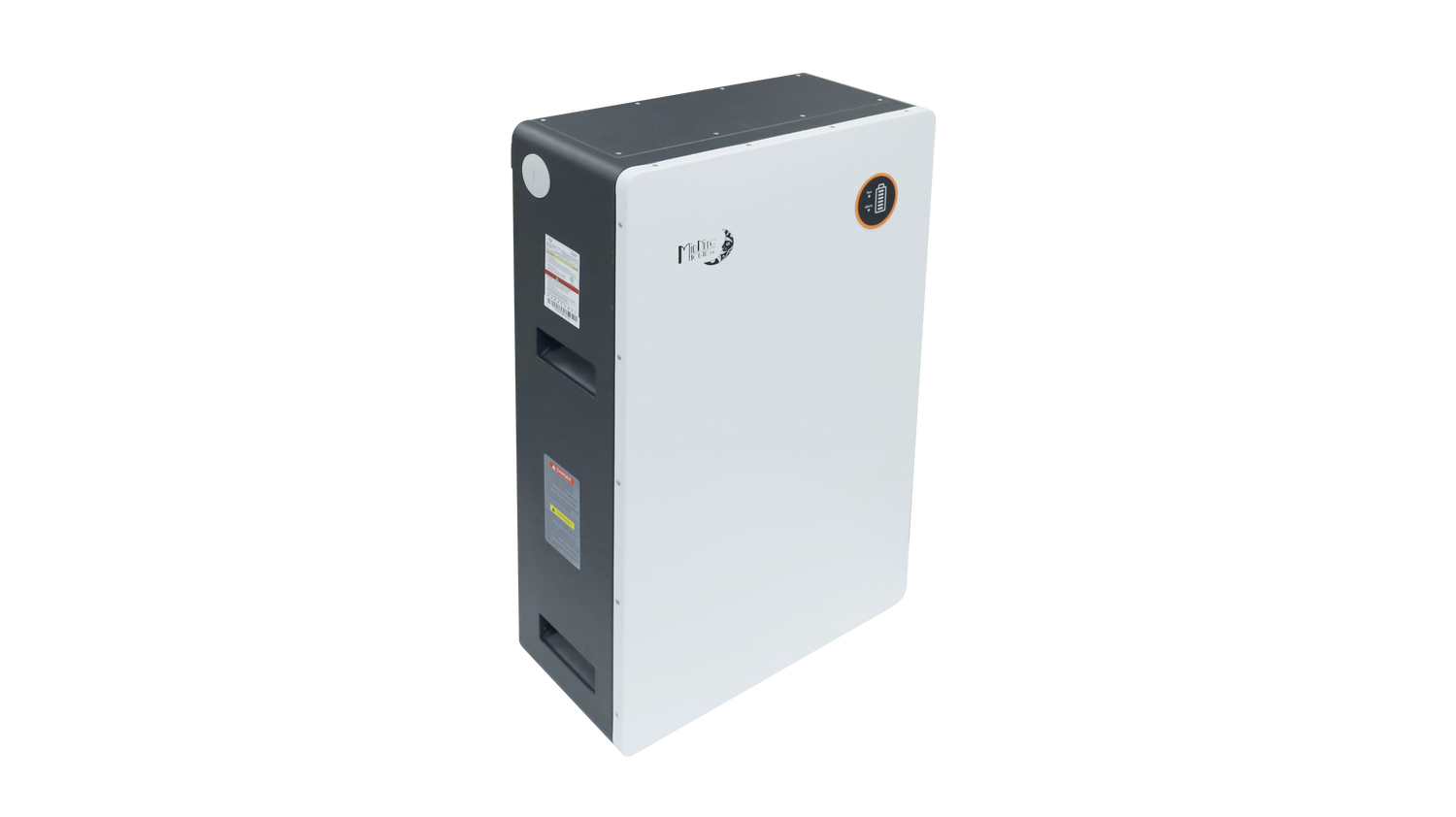

MidNite Solar MNPowerFlo10 — 10kWh 48V LFP Battery | Wall/Floor Mount
The MidNite Solar MNPowerFlo10 is a 10kWh (10,240Wh) lithium iron phosphate (LFP) battery for residential and off-grid energy storage. Part of the PowerFlo family, it shares the same EVE A+ grade cells, self-heating capability, and plug-and-play Pylontech protocol compatibility as the PowerFlo16, in a more compact 200Ah capacity. Wall or floor mountable, it scales up to 160kWh by paralleling multiple units.
Key Benefits
- 10,240Wh Usable Energy — Ideal capacity for essential-load backup and daily solar self-consumption
- EVE A+ Grade LiFePO4 Cells — Premium cells with multi-level BMS protection for safety and longevity
- Plug-and-Play Design — No dip switches — connect the comm cable and you're ready
- Self-Heating Capability — Built-in heater supports charging in sub-freezing conditions
- Pylontech Protocol — Compatible with MidNite AIO, MNROSIE, and any 48V inverter with Pylontech support
- Scalable System — Parallel multiple units for expanded storage capacity
- IP65 Rated — Wall or floor mount, indoor or protected outdoor use
- 15-Year Warranty — Long-term reliability backed by MidNite Solar
Specifications
| Specification | Detail |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Energy | 10,240Wh (10kWh) |
| Battery Chemistry | Lithium Iron Phosphate (LFP) — EVE A+ Grade |
| Cycle Life | 8,000 cycles @ 77°F (25°C) |
| Operating Voltage | 46.4V–57.6V |
| Nominal Charge/Discharge | 100A |
| Communication | CAN / RS485 / RS232 (Pylontech protocol) |
| Scalable | Multiple units in parallel |
| Enclosure Rating | IP65 |
| Certifications | UL 1973, UL 9540A, UL 9540 |
| Warranty | 15 years |
What's in the Box
- MidNite Solar MNPowerFlo10 Battery
- Communication & power cables
- Wall-mount bracket
- User manual
| SKU | MNS-MNPOWERFLO10 |
|---|---|
| Manufacturer | MidNite Solar |
